STGCR/L :  91° lead angle screw lock toolholders for triangular inserts with 7° clearance angle.
 Right-hand shown

Ext. 60° triangle 91° approach
Related insert for : STGCL 1616H-11

Triangular 7° Positive Flank Inserts for Semi-Finish and Finish Turning on Soft Materials and Exotic Alloys TCMT-SM
Triangular 7° Positive Flank Inserts for Semi-Finish and Finish Turning on Soft Materials and Exotic Alloys

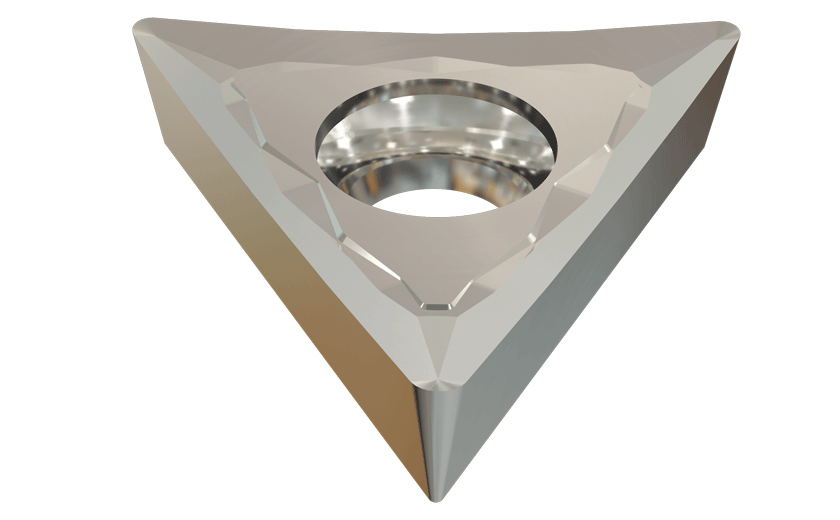

Triangular 7° Positive Flank, Very Positive Rake Angle and Sharp Cutting Edge for Machining Aluminum TCGT-AS
Triangular 7° Positive Flank, Very Positive Rake Angle and Sharp Cutting Edge for Machining Aluminum

Triangular Positive Inserts with a Single CBN Flat Rake Tip for Machining Hardened Steel TCMT (CBN)
Triangular Positive Inserts with a Single CBN Flat Rake Tip for Machining Hardened Steel

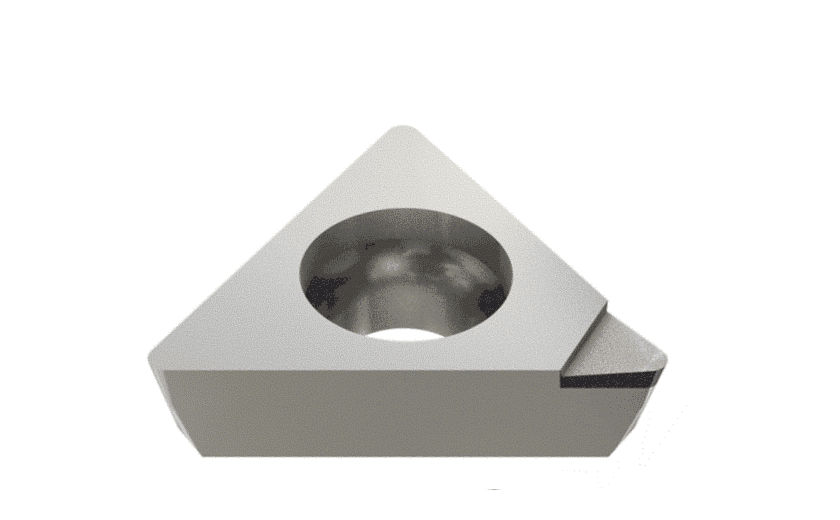

Inserts for Finishing Aluminum with 7° Clearance, PCD Single Top Corner Tip and Positive Rake Angle TCMT (PCD)
Inserts for Finishing Aluminum with 7° Clearance, PCD Single Top Corner Tip and Positive Rake Angle

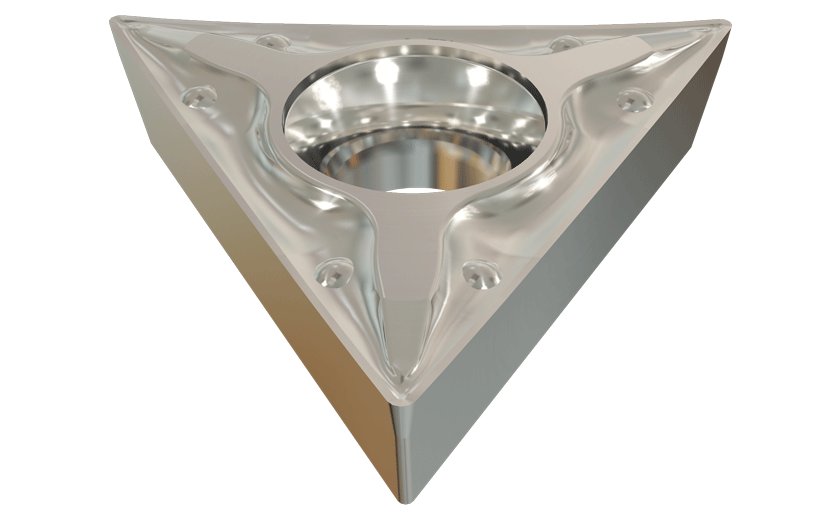

Triangular Positive Flank Inserts for Semi-Finishing and Finishing on Soft Materials and Exotic Alloys TCMT-PF
Triangular Positive Flank Inserts for Semi-Finishing and Finishing on Soft Materials and Exotic Alloys
