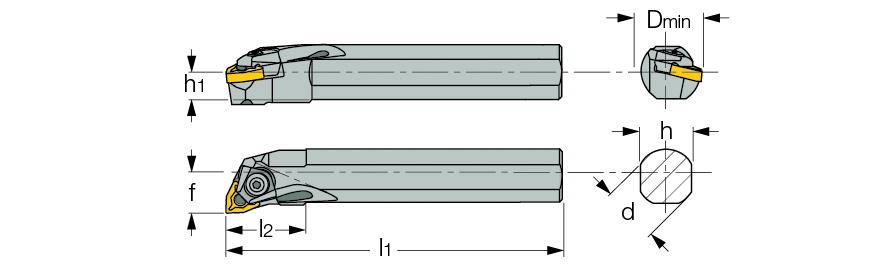

A/S-MWLNR/L-W :
Barras de mandrilar com trava de alavanca para pastilhas negativas de 55°.
Designation
d
l1
l2
h
h1
f
D
min
Ga°
Gr°
Coolant
R/L
A25R MWLNL-06W
25.00
200.00
35.0
23.0
11.7
17.0
32.00
-6
-14
Y
L
A25R MWLNR-06W
25.00
200.00
35.0
23.0
11.7
17.0
32.00
-6
-14
Y
R
S25T MWLNL-06W
25.00
300.00
35.0
23.0
11.7
17.0
32.00
-6
14
-
L
S25T MWLNR-06W
25.00
300.00
35.0
23.0
11.7
17.0
32.00
-6
-14
-
R
A25R MWLNL-08W
25.00
200.00
40.0
23.0
11.7
17.0
32.00
-6
-12
Y
L
A25R MWLNR-08W
25.00
200.00
40.0
23.0
11.7
17.0
32.00
-6
-12
Y
R
A25 MWLNL-08W-AD
25.00
120.00
35.0
23.0
11.7
17.0
32.00
-6
-12
Y
L
A25 MWLNR-08W-AD
25.00
120.00
35.0
23.0
11.7
17.0
32.00
-6
-12
Y
R
S25T MWLNL-08W
25.00
300.00
35.0
23.0
11.7
17.0
32.00
-6
12
-
L
S25T MWLNR-08W
25.00
300.00
35.0
23.0
11.7
17.0
32.00
-6
12
-
R
