HM90 APCT 1003 :  Pastilha de uso geral HELI2000.


Contorno lateral   Faceamento   Descida de Rampa   Rebaixamento   Rebaixo inclinado e chanfro   Fresa circular

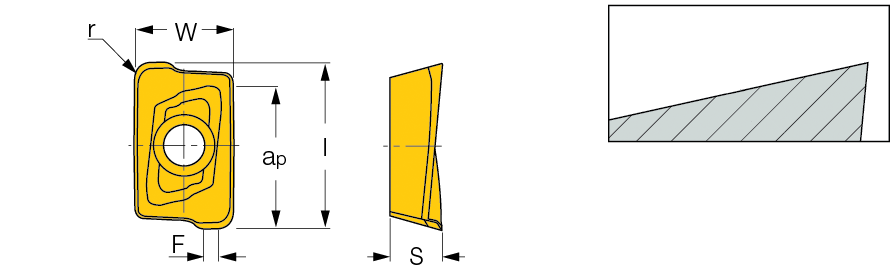

  Designation
W
r
l
S
F
ap		 fz
(min)		 fz
(max)
  Grade
  HM90 APCT 100302R-PDR  6.96  0.20  11.66  3.53  1.90  10.10  0.06  0.12 IC28 IC328 IC928 IC808
  HM90 APCT 100308-HP  6.80  0.80  11.46  3.53  1.40  9.50  0.06  0.12 IC380 IC808
