APKT 1003PDTR/L-RM :  HELIMILL insert with reinforced helical cutting edge for interrupted cut and heavy machining.


Countersinking   Drill mill   Facing   Plunging & recessing   Ramp down   Shouldering   Slanted shoulder. & chamfer.   Slotting

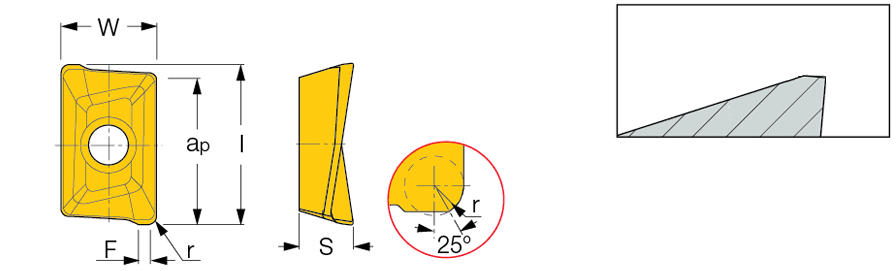

  Designation
W
l
ap
S
r
F		 fz
(min)		 fz
(max)
  Grade
  APKT 1003PDTL-RM  6.70  11.00  9.80  3.47  0.50  1.20  0.10  0.20 IC328
  APKT 1003PDTR-RM  6.70  11.00  9.80  3.47  0.50  1.20  0.10  0.20 IC4010 IC28 IC328 IC635 IC50M IC928 IC250 IC950 IC4050 IC520M IC910 IC30N DT7150 IC4100

APKT...L should be used only on left-hand tools.
