HM90 APKT 1003 :  HELI2000, Helical cutting edged, high 90° shoulder accuracy and surface quality inserts. Used for general applications.


Countersinking   Facing   Ramp down   Shouldering   Slanted shoulder. & chamfer.   Slotting

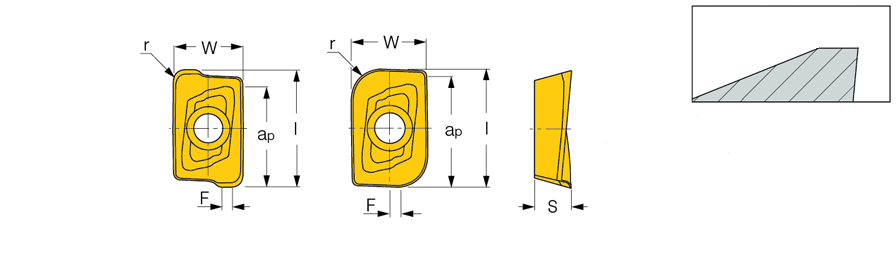

  Designation
W
l
ap
S
r
F		 fz
(min)		 fz
(max)
  Grade
  HM90 APKT 1003PDR  6.76  11.45  10.26  3.53  0.80  1.40  0.08  0.15 IC330 IC328 IC830 IC928 IC950 IC4050 IC5400 IC810 IC910 IC380 IC808 IC908
  HM90 APKT 1003PDR-SC  6.80  11.60  10.20  4.00  0.40  1.80  0.08  0.15 IC330 IC830
  HM90 APKT 1003PDR-MM  6.70  11.50  10.25  3.50  0.80  1.60  0.08  0.15 IC830
  HM90 APKT 1003PDTR-8M  6.76  11.45  10.26  3.53  0.80  1.40  0.08  0.20 IC928 IC910
  HM90 APKT 100304PDR  6.76  11.45  10.25  3.53  0.40  1.78  0.08  0.15 IC28 IC328 IC928 IC908
  HM90 APKT 100308R  6.76  11.45  10.29  3.53  0.80  1.00  0.08  0.15 IC830
  HM90 APKT 100312PDR  6.76  11.45  10.29  3.53  1.20  1.00  0.08  0.15 IC328 IC928 IC908
  HM90 APKT 100316PDR  6.76  11.45  10.29  3.53  1.60  0.58  0.08  0.15 IC328 IC928 IC908
  HM90 APKT 100325PDR  6.76  10.40  9.88  3.53  2.50  -  0.08  0.15 IC328 IC928 IC908
  HM90 APKT 100330PDR  6.76  10.40  9.83  3.53  3.00  -  0.08  0.15 IC328 IC928 IC908

For inserts with corner radii more than 1.5 mm , the cutter body and seat should be modified.
Inserts with corner radii larger than 0.8 mm should be used on APK tools only on the face of the cutter.
For chip former details Click on "More info"
