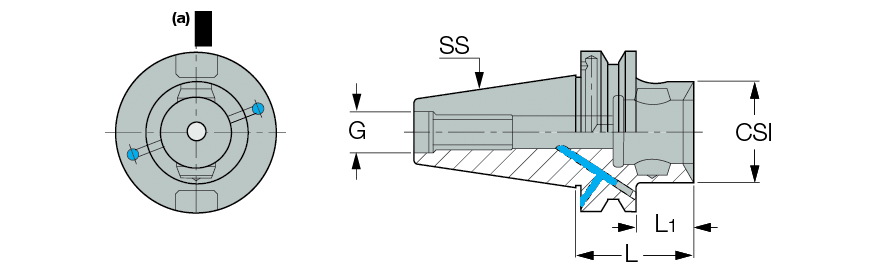

BTB-MB :  MB modular connection system with BT MAS-403 type B taper shanks.
 (a)Cutting edge position

COOLANT
  Designation
SS
CSI
L1
L
G
Kg
  BTB 40 MB50  40  MB50  21.0  48.00  M16  1.05
  BTB 40 MB63  40  MB63  -  66.00  M16  1.34
  BTB 50 MB50X 66 A/B  50  MB50  28.0  66.00  M24  3.80
  BTB 50 MB63X 75 A/B  50  MB63  37.0  75.00  M24  4.00
  BTB 50 MB80 A/B  50  MB80  37.0  75.00  M24  4.30

Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
