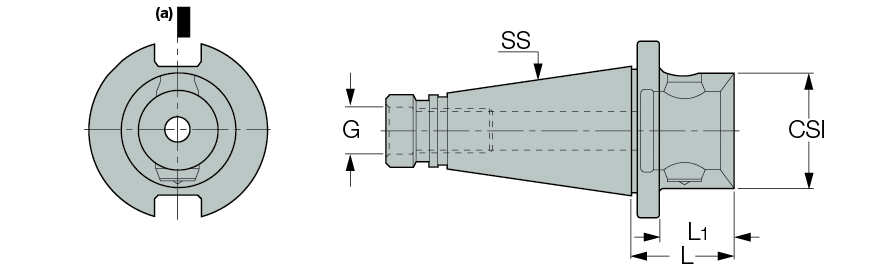

ISO-MB :  MB modular connection system with ISO 297 taper shanks.
 (a)Cutting edge position

COOLANT
  Designation
SS
CSI
L1
L
G
Kg
  ISO 40-MB50  40  MB50  36.0  48.00  UNC 5/8"-11  1.05
  ISO 40-MB63  40  MB63  -  60.00  UNC 5/8"-11  1.36
  ISO 50-MB50  50  MB50  33.0  48.00  UNC 1.0"-8  2.81
  ISO 50-MB63  50  MB63  41.0  56.00  UNC 1.0"-8  2.95
  ISO 50-MB80  50  MB80  45.0  60.00  UNC 1.0"-8  3.50

Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
