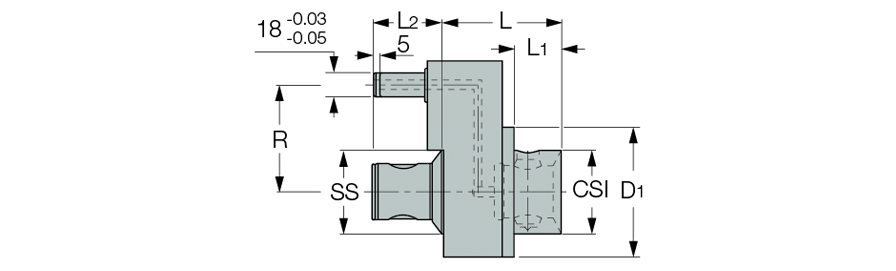

| Designation |
SS |
CSI |
R |
D1 |
L1 |
L |
L2 |
RPM
max |
Bar |
Kg |
|
CHS MB50-R65
|
MB50 |
MB50 |
65 |
80.0 |
28.5 |
72.00 |
43.00 |
7000 |
10 |
3.06 |
|
CHS MB50-R80
|
MB50 |
MB50 |
80 |
80.0 |
28.5 |
72.00 |
43.00 |
7000 |
10 |
3.30 |
|
CHS MB63-R80
|
MB63 |
MB63 |
80 |
100.0 |
37.0 |
88.00 |
51.00 |
5600 |
10 |
5.16 |
|
Use with stop block
Important: coolant flow must be started prior to rotating the spindle to avoid damage of the O-rings
Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
|
 |
    |
