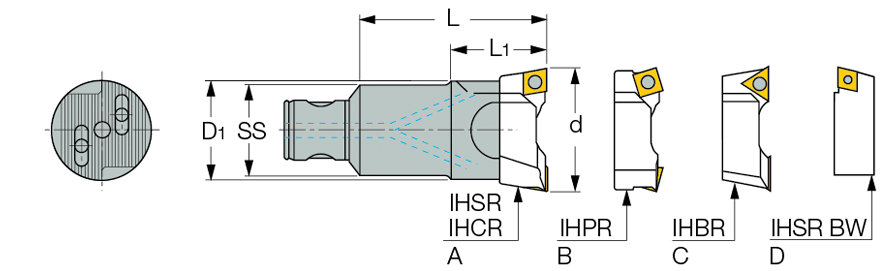

| BHR MB : Rough boring heads for diameter range 18-200 mm used on the MB modular boring system. |
|
|
|
|
|
| Designation |
SS |
d
min |
d
max |
D1 |
L |
L1 |
IH |
Kg |
|
BHR MB25-25X50
|
MB25 |
28.0 |
38.0 |
25.0 |
50.00 |
- |
IH...28-38 |
0.18 |
|
|
Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
|
 |
    |
