BHF MB16-MB50 Dia. 6-108 :  Fine boring heads with MB modular system connection and 2 µm direct diametric adjustment for diameter range 6 to 108 mm .


2 MICROMETER  COOLANT

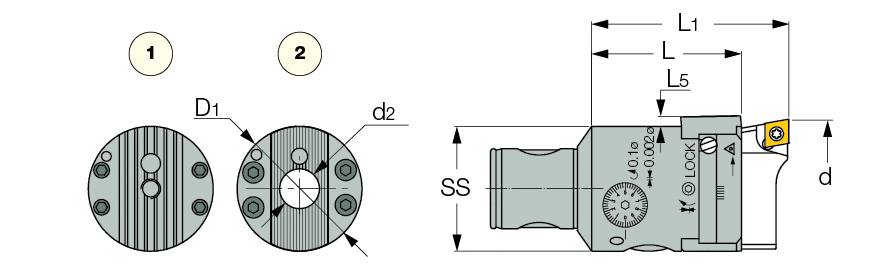

  Designation
SS		 d
min		 d
max
D1
L
L1
L5
d2
Fig
Kg
  BHF MB25-25X50  MB25  28.0  38.0  25.0  40.00  50.0  2.00  -  1  0.23

For boring options, click on "More Info".
