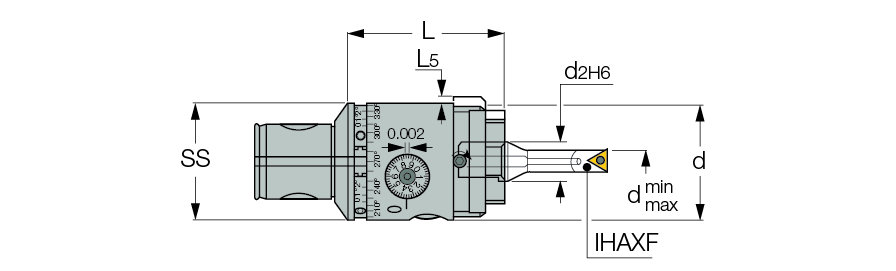

BHF MB-BL :  Fine boring heads with 2 micrometer direct diametric adjustment, a balancing mechanism and MB modular system connection. Used for high rotation speed.


2 MICROMETER  COOLANT
  Designation d
min		 d
max
d2
SS
d
L
L5
Kg
  BHF MB50-32X60 BL  2.5  12.0  8.00  MB50  32.00  60.00  3.00  0.84
  BHF MB50-50X68 BL  2.5  20.0  16.00  MB50  50.00  68.50  4.00  1.17
