DIN2079-MB :  Connecting plates enable the use of ITSBORE components with "MB" connection by using any standard adapter with four screws. It is affixed directly on any machine spindle with a DIN 2079 interface.

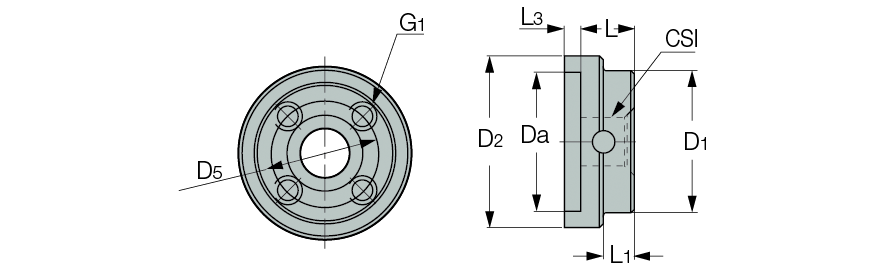

  Designation
CSI
L
L3
L1
D1
D2
Da
D5
G1
Kg
  DIN2079 MB50 40  MB50  35.00  10.00  21.0  90.0  110.00  88.89  66.70  M12  1.96
  DIN2079 MB63 40  MB63  45.00  10.00  31.0  90.0  110.00  88.89  66.70  M12  2.06
  DIN2079 MB63 50  MB63  45.00  12.00  31.0  135.0  150.00  128.57  101.60  M16  4.60
  DIN2079 MB80 50  MB80  45.00  12.00  31.0  135.0  150.00  128.57  101.60  M16  5.00

Standard connection plate that can be assembled easily on most CNC spindle machines with a DIN2079 interface. This connection plate enables the use of ITSBORE components with MB connection by using any standard adapter with four screws. It is affixed directly on the machine spindle.
