GHAIR/L-GE :  Boring bars, for GEAIR/L adapters. Used for internal grooving, turning and threading applications.

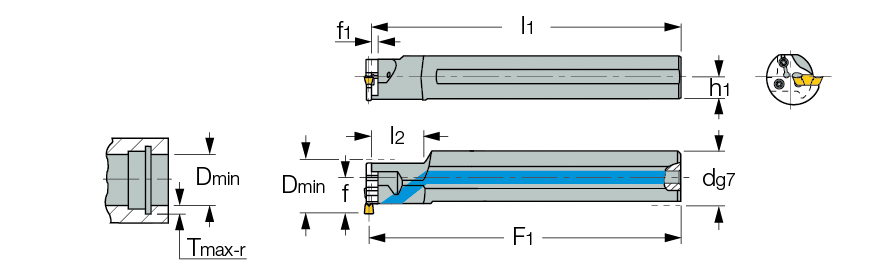

 Right-hand shown
F1=l1-f1+f2. For f2 dimension, see GEAIR/L adapters.
 Left-hand shown


COOLANT
  Designation
d
l2
l1
f
h1
f1
  GHAIL 25-20  25.00  25.0  200.00  16.0  11.5  2.4
  GHAIR 25-20  25.00  25.0  200.00  16.0  11.5  2.4
  GHAIL 25-25  25.00  25.0  200.00  17.0  11.5  2.4
  GHAIR 25-25  25.00  25.0  200.00  17.0  11.5  2.4

For Dmin & Tmax refer to GEAIR/L adapters.
