HP ADCR 2207 :  HELIPLUS milling inserts with a very positive and polished rake for machining aluminum.


Counter boring   Facing   Helical interpolation   Ramp down   Shouldering   Slotting

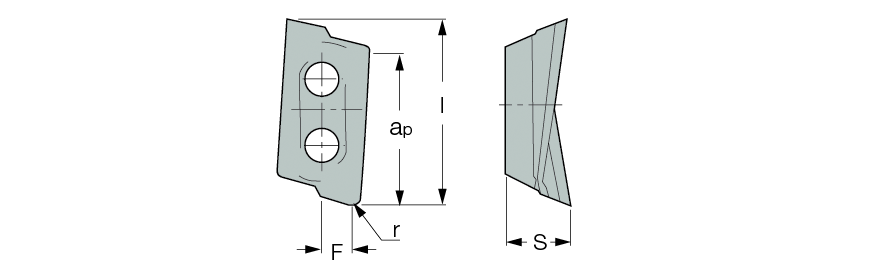

  Designation
l
r
ap
S
F		 fz
(min)		 fz
(max)
  Grade
  HP ADCR 220704PDFR-P  26.14  0.40  22.40  7.52  3.81  0.08  0.25 LM28 IC28
  HP ADCR 220720PDFR-P LM  25.90  2.00  22.70  7.40  2.50  0.08  0.25 IC28
  HP ADCR 220732PDFR-P  25.70  3.20  22.40  7.49  1.20  0.08  0.25 LM28
  HP ADCR 220750PDFR-P LM  24.30  5.00  21.60  7.49  0.47  0.08  0.15 IC28

LM insert provides high 90° shoulder accuracy, especially when using the 32-50 mm cutters
