SCIR/L-B/F-MTR/MTL : 60° partial profile threading inserts. Used on Swiss type automatics and small CNC lathes.

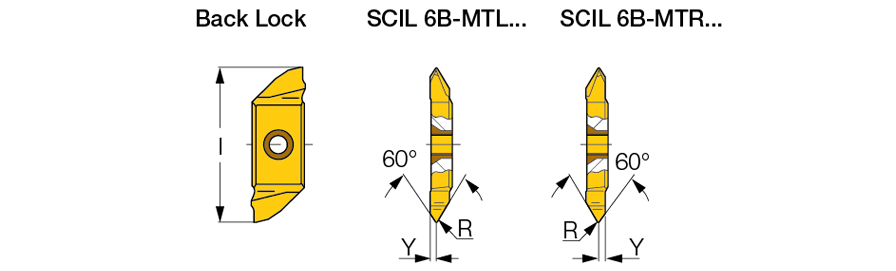

SCIL 6B-MTL

Designation	l	R	Y	Pmin	Pmax	TPI max	TPI min	Grade
SCIL 6F-MTL003	22.00	0.03	0.4	0.30	0.90	83	28	IC1008
SCIL 6F-MTL007	22.00	0.07	0.5	0.70	1.10	36	23	IC1008
SCIR 6F-MTL007	22.00	0.07	0.5	0.70	1.10	36	23	IC1008
SCIL 6F-MTL010	22.00	0.10	0.8	0.90	1.70	28	15	IC1008

Pitch max <0.175xD, TPI min <5.7/D
Front clamped inserts are optional - on request
