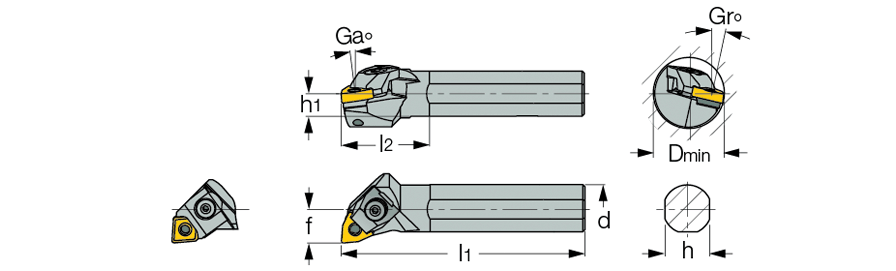

| S-MULNR/L-MW : MULTI-WEDGE lock boring bars for 80° negative rhombic, trigon and square inserts. |
|
|
|
|
|
| Designation |
d |
l1 |
l2 |
h |
h1 |
f |
Ga° |
Gr° |
D
min |
R/L |
|
S25T MULNL-12MW
|
25.00 |
300.00 |
45.0 |
23.0 |
11.6 |
17.0 |
-6 |
-12 |
36.00 |
L |
|
S25T MULNR-12MW
|
25.00 |
300.00 |
45.0 |
23.0 |
11.6 |
17.0 |
-6 |
-12 |
36.00 |
R |
|
Only LC WN08 is supplied with the boring bar. The other wedge should be ordered separately.
RH wedge for RH tool. LH wedge for LH tool. For other wedges see more info.
|
 |
    |
