IM-MULNR/L-MW :  MULTI-WEDGE lock, toolholders with ISO 26622-1(*) tapered shanks for negative 80° rhombic, trigon and square inserts.

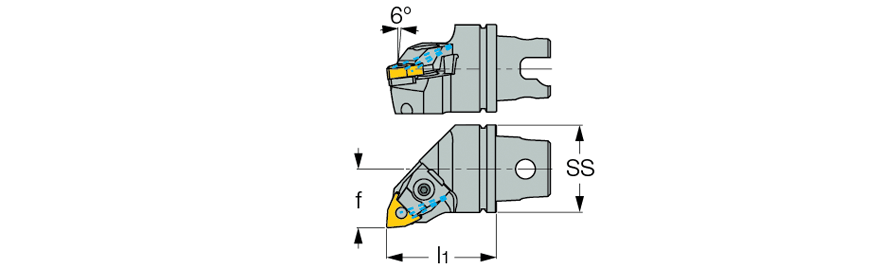

 Right-hand shown

Ext. 80° diamond 95° approach   Ext. 80° trigon 95 approach   Ext. 90° square 75° approach   Radial Turning   ISO 26622-1   COOLANT  MULNR/L-MW
  Designation
SS
f
l1
R/L
  IM40 MULNL-12MW  40  27.0  50.00  L
  IM40 MULNR-12MW  40  27.0  50.00  R
  IM50 MULNL-12MW  50  35.0  60.00  L
  IM50 MULNR-12MW  50  35.0  60.00  R

Tools with orientation holes in the flange groove can be supplied on request
