GHAIR/L-SC-GE :  Solid carbide bars with coolant holes for GEAIR/L adapters with GEPI / GEMI inserts, used for internal grooving, turning and threading.

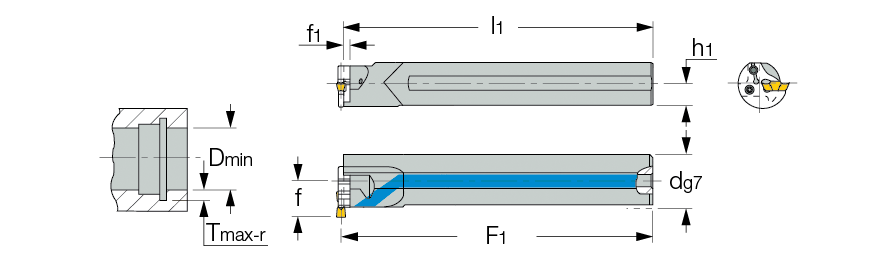

 Right-hand shown
F1=l1-f1+f2. For f2 dimension, see GEAIR/L adapters.



COOLANT
  Designation
d		 D
min
Tmax-r
l1
f
h1
f1
  GHAIL 25SC-25  25.00  31.00  4.00  200.00  17.0  11.5  2.4
  GHAIR 25SC-25  25.00  31.00  4.00  200.00  17.0  11.5  2.4

For D min & T max refer to GEAIRLI & GAIR/L adapters.
