DSDNN :  45° approach angle R-clamp external turning tools for ISO negative SNMG inserts.


Ext. 90° square 45° approach

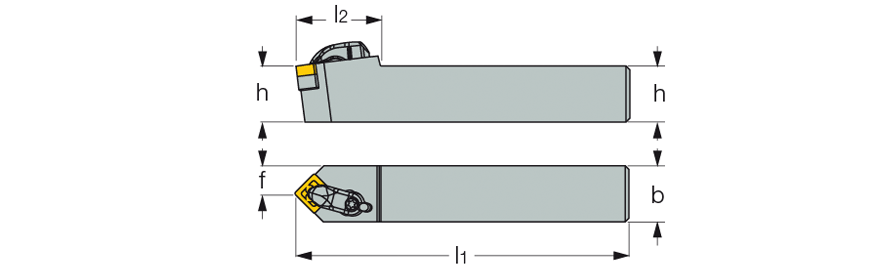

  Designation
h
b
l1
l2
f
Ga°
Gr°
Insert
  DSDNN 2525M-12  25.0  25.0  150.00  38.0  12.8  0  -7  SNMG 1204
  DSDNN 2525M-15  25.0  25.0  150.00  42.0  12.5  0  -8.5  SNMG 1506
  DSDNN 3232P-19  32.0  32.0  170.00  44.0  16.0  0  -8.5  SNMG 1906
