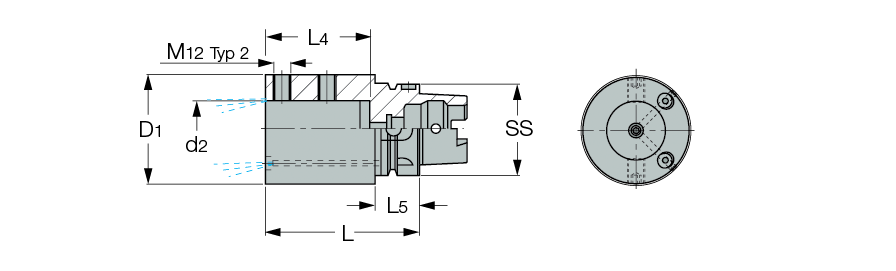

 HSK A-WH ABB :  Adapters with HSK exchangeable shanks for boring bars with reduction sleeves.


100 BAR MAX.
  Designation
SS
d2
L
L5
D1
L4
  HSK A63WH-ABB-40  63  40.00  105.00  30.00  75.0  71.0
  HSK A100WH-ABB-40  100  40.00  115.00  34.00  82.0  71.0
  HSK A100WH-ABB-50  100  50.00  125.00  34.00  92.0  83.0

Complies with the HSK-T (ISO 12164-3) and ICTM standards.
A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
For shank dimensions, click on "More Info".
