HSK A63WH-SEL :  External threading tools with HSK exchangeable shanks for 15° mounting on turn-mill machines.
 Complies with the ICTM and HSK-T standards.

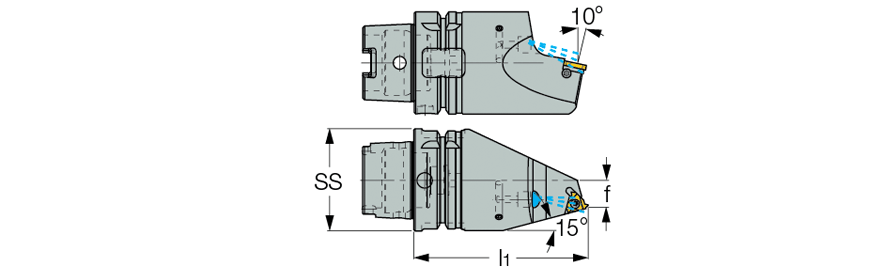

Left-hand shown

HSK   External threading   SEL  COOLANT
  Designation
SS
l1
f
R/L
  HSK A63WH-SEL-J16  63  110.00  17.0  L

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
For shank dimensions, see more info.
