 DGR/L-J/JS :  First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin-walled parts at low-to-medium feeds. Cutting edge with a positive rake. JS-type has a sharp corner.


Parting

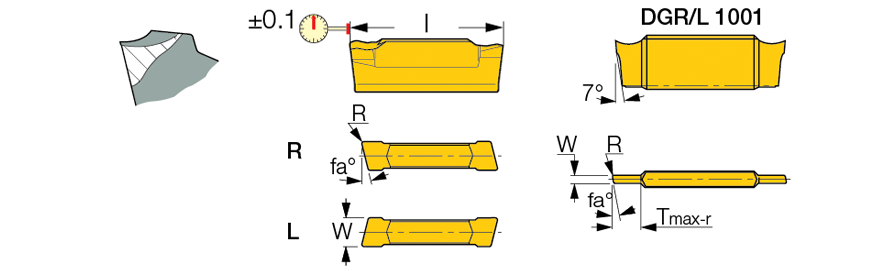

  Designation
W
R
Tmax-r
fa°		 l
Ref.		 fg
(min)		 fg
(max)
  Grade
  DGL 1001J-8D  1.00  0.07  3.00  8.0  21.0  0.02  0.06 IC308 IC908
  DGR 1001J-8D  1.00  0.07  3.00  8.0  21.0  0.02  0.06 IC328 IC1028 IC308 IC908
  DGL 1400JS-15D  1.40  0.02  15.00  15.0  15.4  0.03  0.07 IC328
  DGR 1400JS-15D  1.40  0.02  15.00  15.0  15.4  0.03  0.07 IC328 IC830 IC1028 IC308 IC908
  DGL 1402J-8D  1.40  0.16  15.00  8.0  15.8  0.03  0.08 IC328 IC1028
  DGR 1402J-8D  1.40  0.16  15.00  8.0  15.8  0.03  0.08 IC328 IC830 IC1028 IC308 IC908
  DGR 1500J-8D  1.50  0.05  18.00  8.0  20.9  0.03  0.08 IC328 IC830 IC1028 IC308
  DGL 2200JS-15D  2.20  0.02  18.00  15.0  20.4  0.03  0.07 IC328 IC1028 IC354 IC308 IC908
  DGL 2200JS-6D  2.20  0.02  18.00  6.0  20.4  0.03  0.08 IC328 IC1028 IC308 IC908
  DGR 2200JS-15D  2.20  0.02  18.00  15.0  20.6  0.03  0.07 IC328 IC1028 IC354 IC308 IC908
  DGR 2200JS-6D  2.20  0.02  18.00  6.0  20.6  0.03  0.08 IC328 IC830 IC1028 IC308 IC908
  DGL 2202J-6D  2.20  0.20  18.00  6.0  21.0  0.03  0.10 IC328 IC1028 IC354 IC908 IC20
  DGR 2202J-15D  2.20  0.20  18.00  15.0  21.0  0.03  0.08 IC328 IC830 IC1028
  DGR 2202J-6D  2.20  0.20  18.00  6.0  21.0  0.03  0.10 IC328 IC830 IC1028 IC354 IC908 IC20
  DGL 3100JS-15D  3.10  0.02  18.00  15.0  20.6  0.03  0.07 IC328 IC1028 IC354 IC308 IC908
  DGL 3100JS-6D  3.10  0.02  18.00  6.0  20.6  0.03  0.08 IC328 IC1028 IC308 IC908
  DGR 3100JS-15D  3.10  0.02  18.00  15.0  20.6  0.03  0.07 IC328 IC830 IC1028 IC354 IC308 IC908
  DGR 3100JS-6D  3.10  0.02  18.00  6.0  21.0  0.03  0.08 IC328 IC830 IC1028 IC308 IC908
  DGL 3102J-15D  3.10  0.20  18.00  15.0  21.0  0.04  0.10 IC328 IC1028
  DGL 3102J-6D  3.10  0.20  18.00  6.0  21.0  0.04  0.14 IC328 IC830 IC1028 IC354 IC908 IC20
  DGR 3102J-15D  3.10  0.20  18.00  15.0  21.0  0.04  0.10 IC328 IC1028 IC354 IC908
  DGR 3102J-6D  3.10  0.20  18.00  6.0  21.0  0.04  0.14 IC328 IC830 IC1028 IC354 IC908 IC20
  DGR 4000JS-15D  4.00  0.00  -No depth limit.  15.0  18.4  0.04  0.10 IC328
  DGL 4003J-4D  4.00  0.30  -No depth limit.  4.0  18.9  0.04  0.15 IC328 IC1028 IC354 IC908 IC20
  DGR 4003J-4D  4.00  0.30  -  4.0  19.0  0.04  0.15 IC328 IC830 IC1028 IC354 IC808 IC908 IC20
  DGR 4800JS-4D  4.80  0.03  -No depth limit.  4.0  19.7  0.04  0.12 IC328
  DGR 4800JS-8D  4.80  0.03  -No depth limit.  8.0  19.7  0.04  0.14 IC328
  DGR 4803J-4D  4.80  0.30  -No depth limit.  4.0  20.4  0.04  0.18 IC328
  DGR 4803J-8D  4.80  0.30  -No depth limit.  8.0  20.4  0.04  0.15 IC328
  DGL 5003J-4D  5.00  0.30  -No depth limit.  4.0  19.0  0.05  0.20 IC328 IC354 IC20
  DGR 5003J-4D  5.00  0.30  -No depth limit.  4.0  19.0  0.05  0.20 IC328 IC1028 IC354 IC20
  DGL 6303J-4D  6.35  0.35  -No depth limit.  4.0  19.1  0.05  0.25 IC328 IC354 IC20
  DGR 6303J-4D  6.35  0.35  -  4.0  19.1  0.05  0.25 IC328 IC354 IC20
