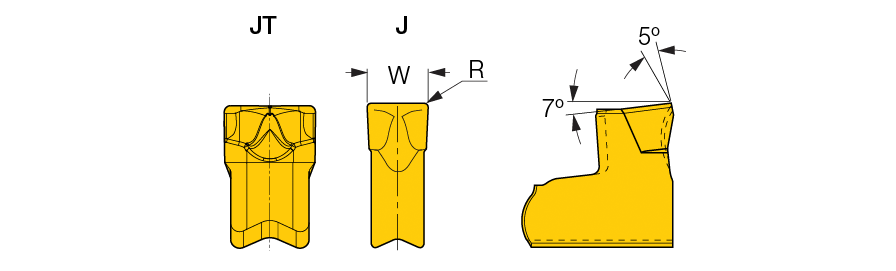

TAG N-J/JS/JT :  First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners.


   Side slotting   Slitting   Ext. Grooving   Parting
  Designation
W±0.04
R±0.05		 fg
(min)		 fg
(max)
  Grade
  TAG N4J  4.00  0.24  0.04  0.18 IC830 IC928 IC808 IC908 IC807
  TAG N4JT  4.05  0.24  0.06  0.20 IC830 IC808 IC908

JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge. Most suitable for soft materials at low-to-medium feeds.
