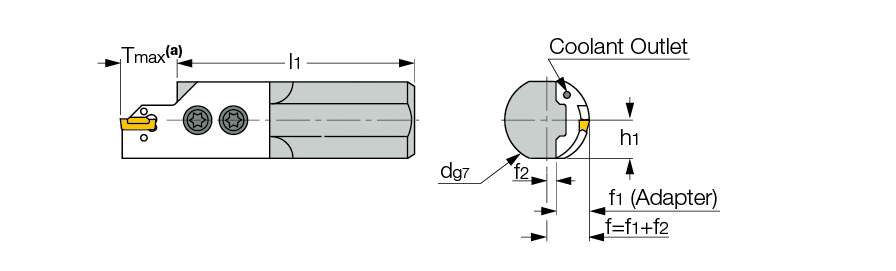

HAI-C :  Boring bars for with coolant holes for internal grooving and turning adapters.




  Designation
d
l1
h1
f2
Coolant
  HAI 20  20.00  130.00  9.0  0.50  N
  HAI 25C  25.00  150.00  11.5  3.00  Y
  HAI 32C  32.00  200.00  14.5  6.50  Y
  HAI 40C  40.00  250.00  18.0  10.50  Y

The HAI boring bars can be used with right- and left-hand adapters.
