TAG R/L-J/JS :  First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners.


Parting

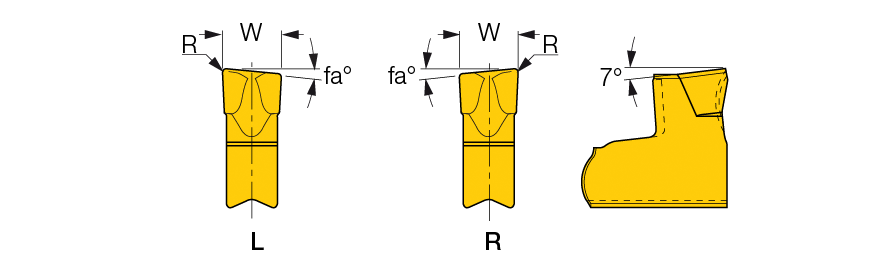

  Designation
W
R
fa°		 fg
(min)		 fg
(max)
  Grade
  TAG L1.4J-8D  1.40  0.16  8.0  0.03  0.08 IC830 IC808 IC807
  TAG R1.4J-8D  1.40  0.16  8.0  0.03  0.08 IC830 IC808 IC807
  TAG L1.4JS-10D  1.40  0.02  10.0  0.02  0.06 IC830 IC808 IC807
  TAG R1.4JS-10D  1.40  0.02  10.0  0.02  0.06 IC830 IC808 IC807
  TAG L2J-6D  2.00  0.20  6.0  0.03  0.10 IC830 IC808
  TAG R2J-6D  2.00  0.20  6.0  0.03  0.10 IC830 IC808
  TAG L2JS-6D  2.00  0.02  6.0  0.02  0.08 IC830 IC808
  TAG R2JS-6D  2.00  0.02  6.0  0.02  0.08 IC830 IC808
  TAG L2J-15D  2.00  0.20  15.0  0.03  0.08 IC830 IC808
  TAG R2J-15D  2.00  0.20  15.0  0.03  0.08 IC830 IC808
  TAG L2JS-15D  2.00  0.02  15.0  0.02  0.06 IC830 IC808
  TAG R2JS-15D  2.00  0.02  15.0  0.02  0.06 IC830 IC808
  TAG L3J-6D  3.00  0.20  6.0  0.04  0.14 IC830 IC928 IC808 IC908
  TAG R3J-6D  3.00  0.20  6.0  0.04  0.14 IC830 IC928 IC808 IC908
  TAG L3JS-6D  3.00  0.02  6.0  0.03  0.10 IC830 IC808
  TAG R3JS-6D  3.00  0.02  6.0  0.03  0.10 IC830 IC808
  TAG L3J-15D  3.00  0.20  15.0  0.04  0.12 IC830 IC928 IC808 IC908
  TAG R3J-15D  3.00  0.20  15.0  0.04  0.12 IC830 IC928 IC808 IC908
  TAG L3JS-15D  3.00  0.02  15.0  0.03  0.08 IC830 IC808
  TAG R3JS-15D  3.00  0.02  15.0  0.03  0.08 IC830 IC808
  TAG L4J-4D  4.00  0.24  4.0  0.04  0.15 IC830
  TAG R4J-4D  4.00  0.24  4.0  0.04  0.15 IC830 IC928 IC808 IC908
  TAG L4J-4D  4.01  0.24  4.0  0.04  0.15 IC808
  TAG L5J-4D  5.05  0.25  4.0  0.05  0.18 IC830 IC808
  TAG R5J-4D  5.05  0.25  4.0  0.05  0.18 IC830 IC808
  TAG L6.3J-4D  6.35  0.35  4.0  0.05  0.20 IC830 IC808
  TAG R6.3J-4D  6.35  0.35  4.0  0.05  0.20 IC830 IC808
