ERW :  SHREDMILL-milling cutters which can carry round inserts with serrated cutting edges or regular round inserts. Used for rough machining applications on small dies and low power machines. Cutting Conditions Machine Power

 For Adaptation Click on Info.
Plunging & recessing   Profiling   Ramp down   Facing

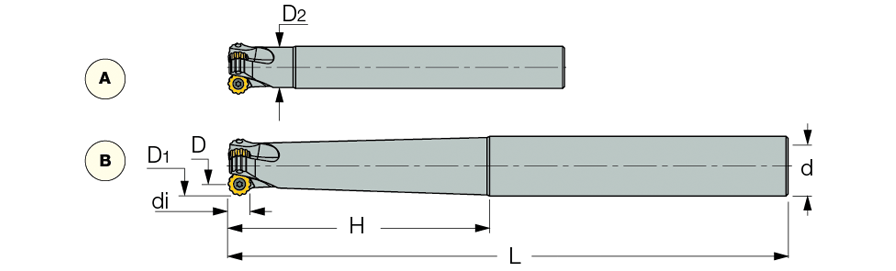

  Designation
D1
D
di
Z
H
L
d
Shank
D2
Rd°
Type
Kg
  ERW D013A025-B-2-C25-12  25.0  13.00  12.000  2  100.0  180.00  25.00  C  -  2.00  B  0.00
  ERW D020A032-A-3-C25-12  32.0  20.00  12.000  3  40.0  200.00  25.00  C  24.00  7.00  A  0.84
  ERW D020A032-B-3-C32-12  32.0  20.00  12.000  3  140.0  300.00  32.00  C  -  7.00  B  1.71
  ERW D028A040-A-4-C32-12  40.0  28.00  12.000  4  50.0  250.00  32.00  C  31.00  5.00  A  2.52
