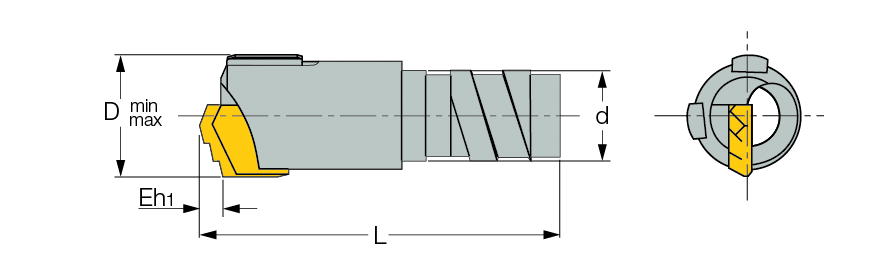

DSD-E0 :  Deep single tube drills with external single thread connection and a brazed single tip. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.
 NOM 0 refers to non-coated drill head, NOM 2 refers to coated drill head

DEEPDRILL   Drilling   COOLANT
  Designation D
min
D
max

L

d

Eh1

TsTube designation
  DSD-E0 8.00-8.99 NOM 0  8.00  8.99  35.00  6.00  2.0  TS001
  DSD-E0 8.00-8.99 NOM 2  8.00  8.99  35.00  6.00  2.0  TS001
  DSD-E0 9.00-9.99 NOM 0  9.00  9.99  35.00  7.20  2.0  TS002
  DSD-E0 9.00-9.99 NOM 2  9.00  9.99  35.00  7.20  2.0  TS002
  DSD-E0 10.00-10.99 NOM 0  10.00  10.99  35.20  7.60  2.2  TS003
  DSD-E0 10.00-10.99 NOM 2  10.00  10.99  35.20  7.60  2.2  TS003
  DSD-E0 11.00-11.99 NOM 0  11.00  11.99  35.20  8.60  2.2  TS004
  DSD-E0 11.00-11.99 NOM 2  11.00  11.99  35.20  8.60  2.2  TS004
  DSD-E0 12.00-13.49 NOM 0  12.00  13.49  35.30  9.10  2.3  TS005
  DSD-E0 12.00-13.49 NOM 2  12.00  13.49  35.30  9.10  2.3  TS005
  DSD-E0 13.50-14.79 NOM 0  13.50  14.79  35.40  10.80  2.4  TS006
  DSD-E0 13.50-14.79 NOM 2  13.50  14.79  35.40  10.80  2.4  TS006

The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: P-Steel M-Stainless Steel K-Cast Iron.
