DSD-E1 :  Deep, single tube drills with external 2 and 4 start thread connection and a brazed single tip. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.
 NOM 0 refers to non-coated drill head, NOM 2 refers to coated drill head.

DEEPDRILL   Drilling   COOLANT

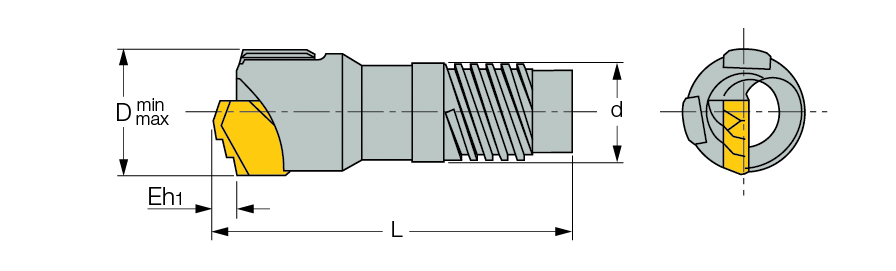

  Designation D
min		 D
max
L
d
Eh1
ThreadsNo. of thread starts
TsTube designation
  DSD-E1 12.60-13.60 NOM 0  12.60  13.60  42.50  9.60  2.3  2  TS-I01
  DSD-E1 12.60-13.60 NOM 2  12.60  13.60  42.50  9.60  2.3  2  TS-I01
  DSD-E1 13.61-14.60 NOM 0  13.61  14.60  42.70  10.60  2.4  2  TS-I02
  DSD-E1 13.61-14.60 NOM 2  13.61  14.60  42.70  10.60  2.4  2  TS-I02
  DSD-E1 14.61-15.59 NOM 0  14.61  15.59  43.20  12.60  3.0  4  TS-I03
  DSD-E1 14.61-15.59 NOM 2  14.61  15.59  43.20  12.60  3.0  4  TS-I03
  DSD-E1 15.60-16.70 NOM 0  15.60  16.70  42.70  11.60  2.4  2  TS-I0
  DSD-E1 15.60-16.70 NOM 2  15.60  16.70  42.70  11.60  2.4  2  TS-I0
  DSD-E1 16.71-17.70 NOM 0  16.71  17.70  43.20  13.60  3.0  4  TS-I1
  DSD-E1 16.71-17.70 NOM 2  16.71  17.70  43.20  13.60  3.0  4  TS-I1
  DSD-E1 17.71-18.90 NOM 0  17.71  18.90  43.60  14.50  3.3  4  TS-I2
  DSD-E1 17.71-18.90 NOM 2  17.71  18.90  43.60  14.50  3.3  4  TS-I2
  DSD-E1 18.91-20.00 NOM 0  18.91  20.00  43.60  15.50  3.3  4  TS-I3
  DSD-E1 18.91-20.00 NOM 2  18.91  20.00  43.60  15.50  3.3  4  TS-I3

The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: P-Steel M-Stainless Steel K-Cast Iron.
For quotation form and user guide click on "More Info".
