F90LN-N15 :

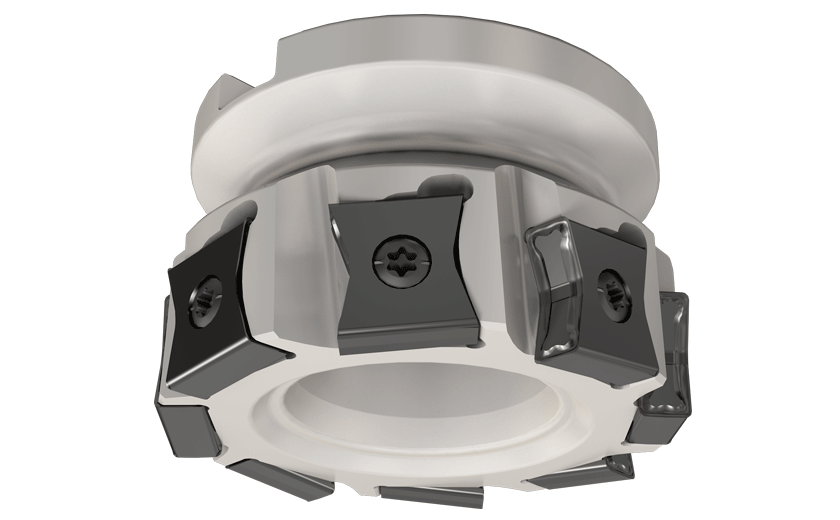

TANGMILL 90° face mills with tangentially clamped inserts.
For profile of Machined wall Clickson info.
For Adaptation Click on Info.

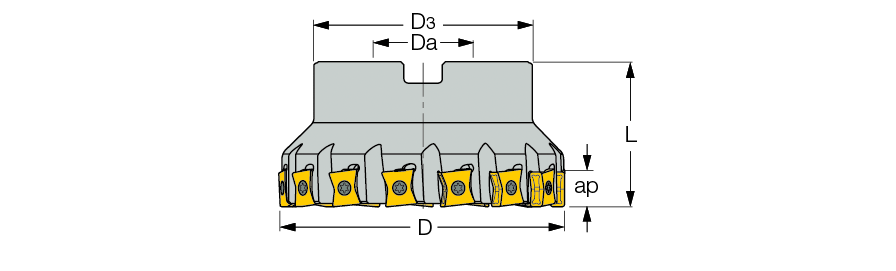

Designation
D
Z
L
Ap
Da
Arbor
Kg
R/L
F90LN D050-05-22-R-N15
50.00
5
40.00
14.00
22.00
A
0.31
R
F90LN D063-05-22-L-N15
63.00
5
40.00
14.00
22.00
B
0.53
L
F90LN D063-05-22-R-N15
63.00
5
40.00
14.00
22.00
B
0.50
R
F90LN D063-08-22-L-N15
63.00
8
40.00
14.00
22.00
B
0.49
L
F90LN D063-08-22-R-N15
63.00
8
40.00
14.00
22.00
B
0.50
R
F90LN D080-07-25.4-R-N15
80.00
7
50.00
14.00
25.40
B
0.68
R
F90LN D080-07-25.40-L-N15
80.00
7
50.00
14.00
25.40
B
0.70
L
F90LN D080-07-27-L-N15
80.00
7
50.00
14.00
27.00
B
0.80
L
F90LN D080-07-27-R-N15
80.00
7
50.00
14.00
27.00
B
1.03
R
F90LN D080-10-25.4-R-N15
80.00
10
50.00
14.00
25.40
B
1.08
R
F90LN D080-10-25.40-L-N15
80.00
10
50.00
14.00
25.40
B
1.08
L
F90LN D080-10-27-L-N15
80.00
10
50.00
14.00
27.00
B
1.05
L
F90LN D080-10-27-R-N15
80.00
10
50.00
14.00
27.00
B
1.00
R
F90LN D100-08-31.75-L-N15
100.00
8
50.00
14.00
31.75
B
1.60
L
F90LN D100-08-31.75-R-N15
100.00
8
50.00
14.00
31.75
B
1.60
R
F90LN D100-08-32-L-N15
100.00
8
50.00
14.00
32.00
B
1.53
L
F90LN D100-08-32-R-N15
100.00
8
50.00
14.00
32.00
B
1.54
R
F90LN D100-12-31.75-L-N15
100.00
12
50.00
14.00
31.75
B
1.64
L
F90LN D100-12-31.75-R-N15
100.00
12
50.00
14.00
31.75
B
1.65
R
F90LN D100-12-32-L-N15
100.00
12
50.00
14.00
32.00
B
1.60
L
F90LN D100-12-32-R-N15
100.00
12
50.00
14.00
32.00
B
1.56
R
F90LN D125-09-38.1-R-N15
125.00
9
63.00
14.00
38.10
B
2.01
R
F90LN D125-09-38.10-L-N15
125.00
9
63.00
14.00
38.10
B
3.00
L
F90LN D125-09-40-L-N15
125.00
9
63.00
14.00
40.00
B
2.93
L
F90LN D125-09-40-R-N15
125.00
9
63.00
14.00
40.00
B
2.94
R
F90LN D125-15-38.1-R-N15
125.00
15
63.00
14.00
38.10
B
3.00
R
F90LN D125-15-40-L-N15
125.00
15
63.00
14.00
40.00
B
3.06
L
F90LN D125-15-40-R-N15
125.00
15
63.00
14.00
40.00
B
3.00
R
F90LN-D125-15-38.1-L-N15
125.00
15
63.00
14.00
38.10
B
3.12
L
F90LN D160-10-40-L-N15
160.00
10
63.00
14.00
40.00
C
3.70
L
F90LN D160-10-40-R-N15
160.00
10
63.00
14.00
40.00
C
4.29
R
F90LN D160-10-50.8-R-N15
160.00
10
63.00
14.00
50.80
B
3.10
R
F90LN D160-10-50.80-L-N15
160.00
10
63.00
14.00
50.80
B
5.12
L
F90LN D160-20-40-L-N15
160.00
20
63.00
14.00
40.00
C
0.58
L
F90LN D160-20-40-R-N15
160.00
20
63.00
14.00
40.00
C
4.34
R
F90LN D160-20-50.8-R-N15
160.00
20
63.00
14.00
50.80
B
4.71
R
F90LN D200-12-60-L-N15
200.00
12
63.00
14.00
60.00
C
6.65
L
F90LN D200-12-60-R-N15
200.00
12
63.00
14.00
60.00
C
6.60
R
F90LN D200-25-60-L-N15
200.00
25
63.00
14.00
60.00
C
6.92
L
F90LN D200-25-60-R-N15
200.00
25
63.00
14.00
60.00
C
7.90
R
F90LN D250-15-60-L-N15
250.00
15
63.00
14.00
60.00
C
10.40
L
F90LN D250-15-60-R-N15
250.00
15
63.00
14.00
60.00
C
10.24
R
F90LN D250-30-60-R-N15
250.00
30
63.00
14.00
60.00
C
10.85
R
