H600 WXCU 08 :  Double-Sided Inserts, 6 Cutting Edges, for Fast Feed. Used for stainless steel and high temperature alloys. The H600 WXCU 080612T insert has "I" marks on top rake for indentification. Used for alloy steel and cast iron.


Facing   Helical interpolation   Plunging & recessing   Profiling   Ramp down   Side plunging

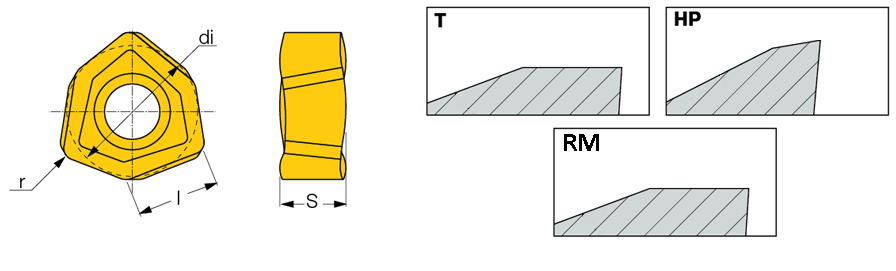

  Designation
di
l
S
rInsert radius for programming: r=3.3 mm on FF tools, r=4.7 mm on MF tools.		 ap
(min)		 ap
(max)		 fz
(min)		 fz
(max)Valid only on FF FWX-08 tools
  Grade
  H600 WXCU 080612HP  13.23  8.80  6.80  1.20  1.00  2.00  0.75  1.50 IC330 IC830 IC808
  H600 WXCU 080612T  13.23  8.80  6.80  1.20  1.00  2.00  1.00  2.00 IC830 IC810 IC808

Recommended machining data on MF tools: For H600 WXCU 080612HP ap=1.8-3.5 mm, fz=0.5-1.0 mm/t, For H600 WXCU 080612T ap=1.8-3.5 mm, fz=0.8-1.5 mm/t.
