APKR 1003PDR-HM :  HELIMILL, super positive inserts, used for machining aluminum, stainless steel and high temperature alloys.


Countersinking   Drill mill   Facing   Plunging & recessing   Ramp down   Shouldering   Slanted shoulder. & chamfer.   Slotting

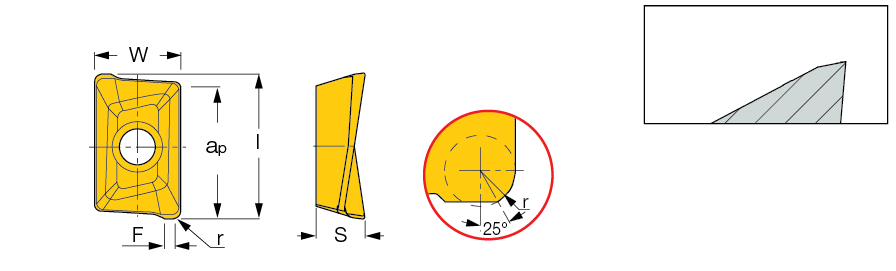

  Designation
W
l
ap
S
r
F		 fz
(min)		 fz
(max)
  Grade
  APKR 1003PDR-HM  6.70  11.20  10.30  3.76  0.50  1.20  0.07  0.15 IC28 IC330 IC328 IC50M IC928 IC250
