DSD-EI :  Deep single tube drills with external 4 start thread connection and indexable inserts. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.


DEEPDRILL   Drilling   COOLANT

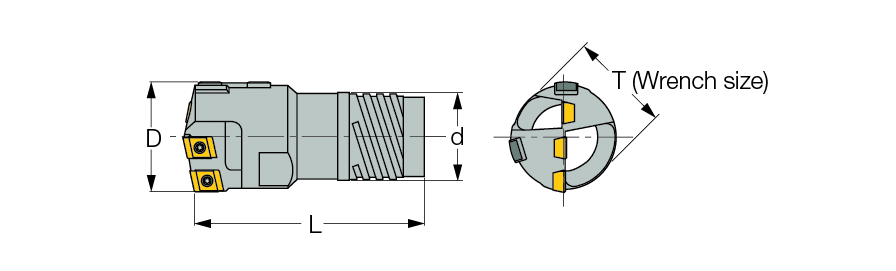

  Designation D
min		 D
max
L
d
T
TsTube designation
  DSD-EI 25.00-26.40  25.00  26.40  70.00  19.50  19.0  TS-I6
  DSD-EI 26.41-28.70  26.41  28.70  70.00  21.00  21.0  TS-I7
  DSD-EI 28.71-31.00  28.71  31.00  75.00  23.50  24.0  TS-I8
  DSD-EI 31.01-33.30  31.01  33.30  75.00  25.50  26.0  TS-I9
  DSD-EI 33.31-36.20  33.31  36.20  80.00  28.00  28.0  TS-I10
  DSD-EI 36.21-39.60  36.21  39.60  90.00  30.00  30.0  TS-I11
  DSD-EI 39.61-43.00  39.61  43.00  95.00  33.00  32.0  TS-I12
  DSD-EI 43.01-47.00  43.01  47.00  100.00  36.00  36.0  TS-I13
  DSD-EI 47.01-51.70  47.01  51.70  100.00  39.00  41.0  TS-I14
  DSD-EI 51.71-53.20  51.71  53.20  110.00  43.00  46.0  TS-I15

For quotation form and user guide click on "More Info".
