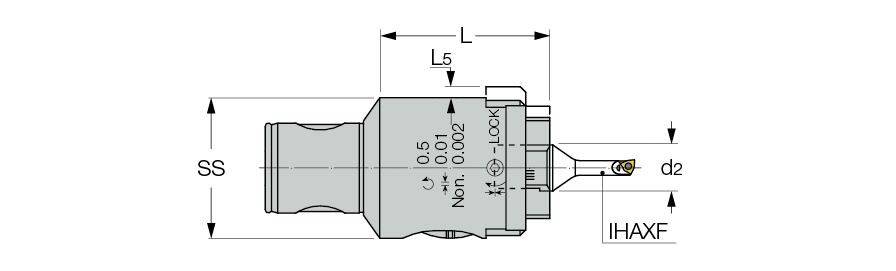

BHE MB-H :  Fine boring heads for high rotation speed, used on the MB modular boring system. 10 micrometer direct diametric adjustment and 2 micrometer by a vernier scale.


2-10 MICROMETER  COOLANT
  Designation
SS		 d
min		 d
max
L
d2
S1		 RPM
max
Kg
  BHE MB32-32X53 H  MB32  2.5  18.0  53.00  8.00  3  12.000  0.42
  BHE MB50-50X60 H  MB50  2.5  22.0  60.00  16.00  4  12.000  1.06
