BHC MB :  Combi rough and fine boring heads with 10 µm direct diametric adjustment and 2 µm by a vernier scale.


2-10 MICROMETER  COOLANT

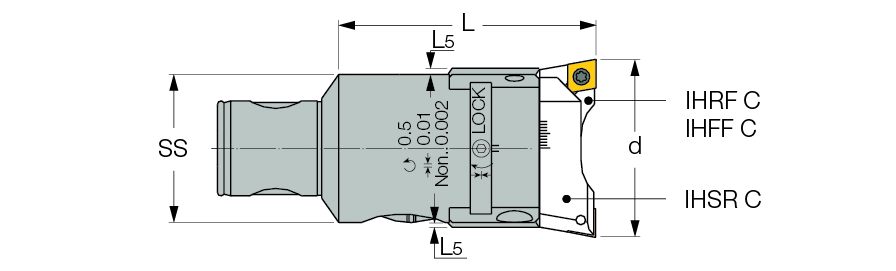

  Designation
SS		 d
min		 d
max
L
L5
IH
  BHC MB25-25X57  MB25  28.0  36.0  56.50  0.50  IH...-C
  BHC MB32-32X71  MB32  36.0  46.0  71.00  0.50  IH...-C
  BHC MB40-40X90  MB40  46.0  60.0  90.00  1.00  IH...-C
  BHC MB50-50X87  MB50  60.0  75.0  87.00  1.00  IH...-C
  BHC MB63-63X109  MB63  78.0  100.0  109.00  2.00  IH...-C
  BHC MB80-80X130  MB80  100.0  125.0  130.00  2.00  IH...-C

The roughing head precedes the finishing head by 0.2 mm. Each head can be adjusted independently
Important: insert radius for combi rough and fine boring must be the same size.
