T290 LNMT/LNHT 1004 :  SUMOMILL Tangential insert with 2 cutting edges.


Counter boring     Shouldering   Slotting

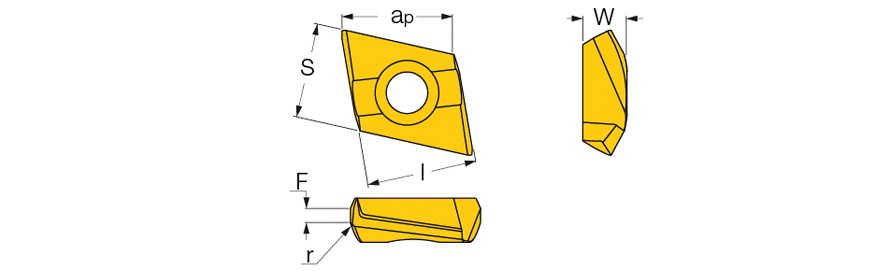

  Designation
W
l
ap
S
F
r		 fz
(min)		 fz
(max)
  Grade
  T290 LNHT 100405TR  4.10  10.40  10.00  8.90  1.30  0.50  0.08  0.20 IC830
  T290 LNMT 100405TR  4.10  10.40  10.00  8.90  1.30  0.50  0.08  0.20 IC330 IC830 IC5400 IC810 IC808 IC5100

LNMT-utility inserts.
