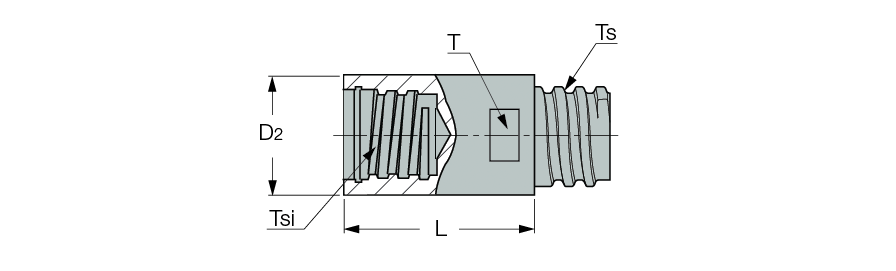

MM CAB-T-T :  MULTI-MASTER shank extensions.




  Designation
D2
Ts
Tsi
L
TClamping wrench size
Kg
  MM CAB T05T05-25/1.0-C  7.60  T05  T05  25.40  6.0  0.12
  MM CAB T06T06-25/1.0-C  9.30  T06  T06  25.40  8.0  0.02
  MM CAB T08T08-25/1.0-C  11.50  T08  T08  25.40  10.0  0.02
  MM CAB T10T10-38/1.5-C  15.20  T10  T10  38.10  13.0  0.08
  MM CAB T12T12-38/1.5-C  18.30  T12  T12  38.10  16.0  0.11

Clamping key should be ordered separately.
For adaptation click on "More Info".
