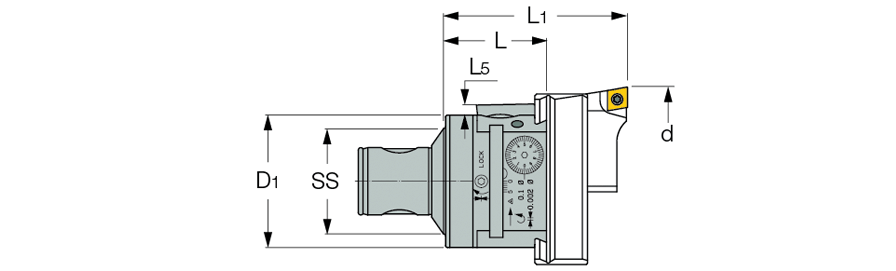

BHF MB50-MB80 Dia. 77-500 :  Fine boring heads with MB modular system connection and 2 µm direct diametric adjustment for diameter range 77 to 500 mm.


2 MICROMETER  COOLANT
  Designation
SS		 d
min		 d
max
D1
L
L1
L5
Kg
  BHF MB50-63X87  MB50  77.0  125.0  63.0  49.00  87.0  5.00  1.26
  BHF MB50-80X94  MB50  95.0  160.0  80.0  58.00  94.0  5.00  2.16
  BHF MB63-63X87  MB63  77.0  125.0  63.0  49.00  87.0  5.00  1.57
  BHF MB80-80X94  MB80  95.0  160.0  80.0  58.00  94.0  5.00  2.67
  BHF MB80-125X114  MB80  135.0  500.0  125.0  63.00  114.0  5.00  5.82
