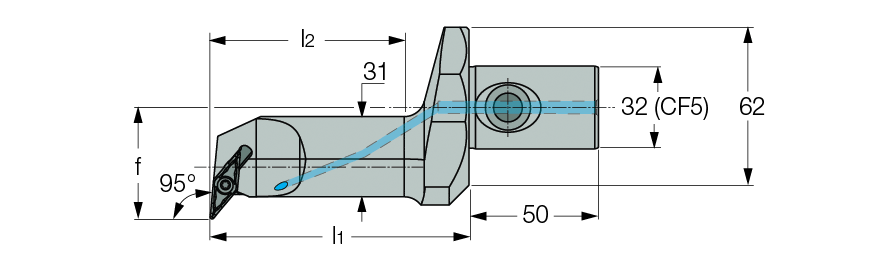

CF5 A-SVLFCR-16 :  Boring head for VCGT 1604 inserts and a CLICKFIT CF5 adaptation, for machining aluminum wheels.
 Right-hand shown

Int. 35° diamond 95° approach   Int. Machining Aluminum Wheels   COOLANT
  Designation D
min
l1
l2
f
  CF5 A-SVLFCR-43100-16  40.00  100.00  75.0  43.0
