H490 E90AX-M :  90° endmills with FLEXFIT threaded connection, carrying H490 ANKX/ANCX 09... double-sided rectangular inserts with 4 helical cutting edges.


Shouldering   Slotting   Side plunging   Facing   COOLANT

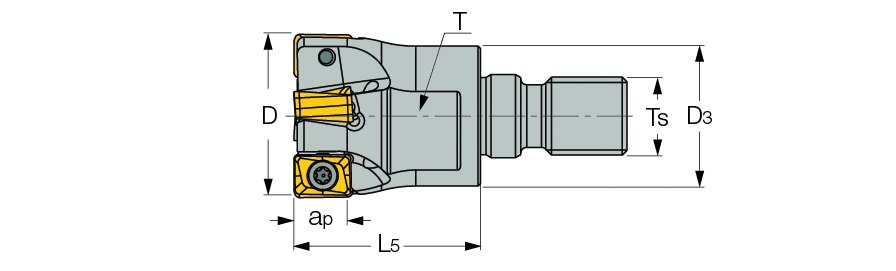

  Designation
D
Z
ap
L5
D3
Ts
TClamping wrench size
Kg
  H490 E90AX D20-3-M10-09  20.00  3  8.00  30.00  18.70  M10  16.0  0.06
  H490 E90AX D25-4-M12-09  25.00  4  8.00  28.00  21.00  M12  17.0  0.08
  H490 E90AX D32-5-M16-09  32.00  5  8.00  30.00  29.00  M16  25.0  0.22

For adaptation, click on "More Info".
