A-PWLNR/L-X :  Lever lock boring bars with coolant holes for heavy machining applications. Used for negative HELITURNLD WNMX trigon inserts.


Int. 80° trigon 95° approach   COOLANT

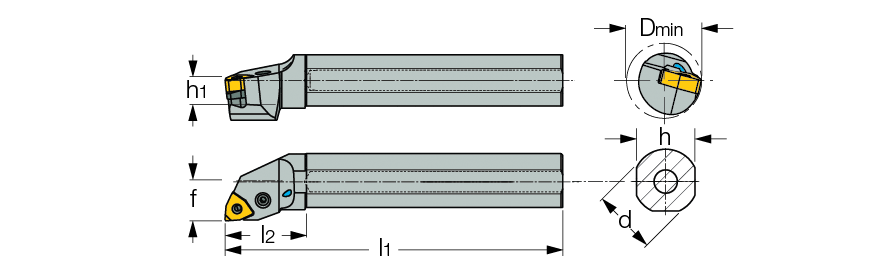

  Designation
d
h
h1
l1
l2
f
Ga°
Gr°		 D
min
  A25R PWLNR-08X  25.00  23.0  11.5  200.00  51.0  21.0  -7  -14  50.00

Important: These tools were designed to be used only with the HELITURNLD inserts
