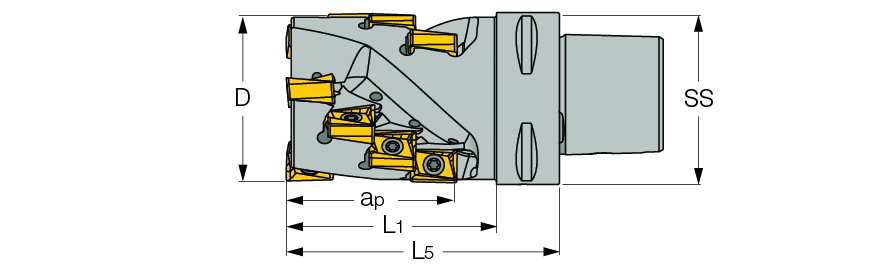

H490 ANKD-C# :  Extended flute endmills with CAMFIX shanks using the H490 ANKX 17...double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications. (HELIDO 490 Line).


CAMFIX ISO 26623-1   Shouldering   Slotting   COOLANT
  Designation
D
ap
Flute
Z
L1
L5
SS
Kg
  H490 ANKD63-60-3-17L100C6  63.00  61.00  3  12  77.0  100.00  63  1.91
