T490 ELN-13-C# :  90° endmills with CAMFIX shanks carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, 13 mm long cutting edges (HELITANG T490 Line).


CAMFIX ISO 26623-1   Shouldering   Slotting   Ramp down   Facing   COOLANT

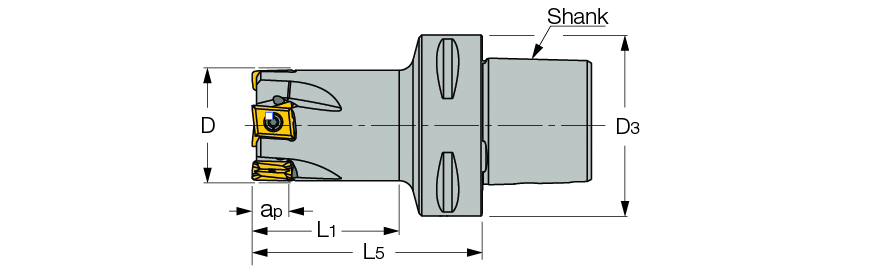

  Designation
D
ap
Z
L1
L5
SS
Rd°Only when T490 LNHT 1306 PNTR-RD insert is used
Kg
  T490 ELN D32-3-L80C6-R-13  32.00  12.50  3  49.8  80.00  63  2.8  1.17
  T490 ELN D40-4-L80C6-R-13  40.00  12.50  4  51.0  80.00  63  2.0  1.32
  T490 ELN D50-5-L80C6-R-13  50.00  12.50  5  51.0  80.00  63  1.5  1.40
