APKT 1003PDR-HM :  HELIMILL inserts with 2 helical cutting edges for general use.


Countersinking   Drill mill   Facing   Plunging & recessing   Ramp down   Shouldering   Slanted shoulder. & chamfer.   Slotting

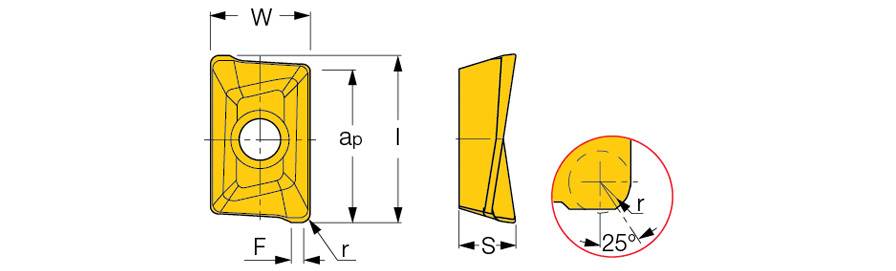

  Designation
W
l
S
ap
r
F		 fz
(min)		 fz
(max)
  Grade
  APKT 1003PDR-HM  6.70  10.95  3.55  10.05  0.50  1.20  0.08  0.15 IC4010 IC28 IC330 IC328 IC635 IC50M IC830 IC928 IC250 IC950 IC4050 IC520M IC910 IC30N IC20
