DCN A-1.5D :  SUMOCHAM 1.5xD drills with indexable heads, one flat shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.


Drilling   COOLANT

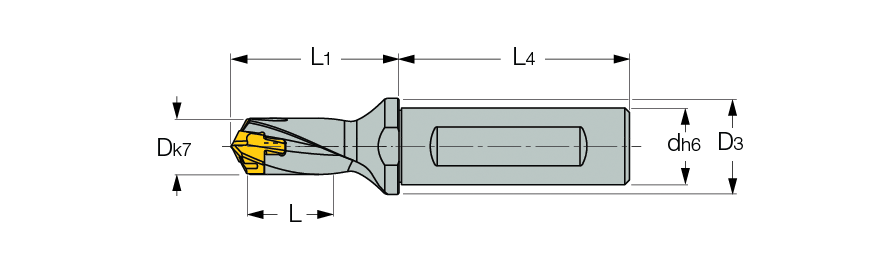

  Designation D
minDo not mount smaller drilling heads than specified range for drill body.		 D
max
L
d
D3
L1
L4		 Po.
Size
  DCN 180-027-25A-1.5D  18.00  18.90  27.0  25.00  32.00  55.5  56.0  18.0
  DCN 190-029-25A-1.5D  19.00  19.90  29.0  25.00  32.00  58.5  56.0  19.0
  DCN 200-030-25A-1.5D  20.00  20.90  30.0  25.00  32.00  61.6  56.0  20.0
  DCN 210-032-25A-1.5D  21.00  21.90  32.0  25.00  32.00  64.7  56.0  21.0
  DCN 220-033-25A-1.5D  22.00  22.90  33.0  25.00  32.00  67.8  56.0  22.0
