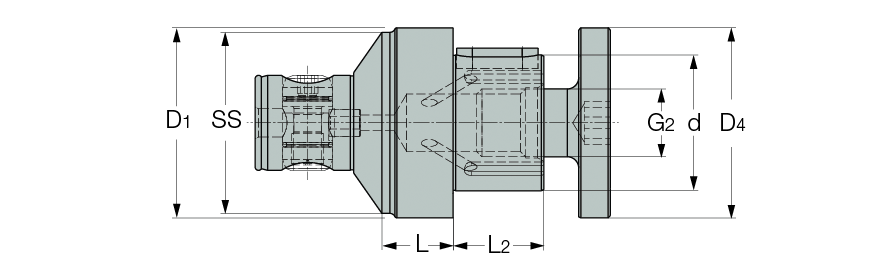

| STUB MB : STUB 60 holder with an ITSBORE MB80 connection for disk type milling cutters. |
|
|
|
|
|
| Designation |
SS |
D1 |
d |
L |
L2 |
G2 |
D4 |
Kg |
|
STUB MB80-60
|
MB80 |
84.0 |
60.00 |
31.50 |
40.00 |
M30 |
84.00 |
6.36 |
|
|
Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
|
 |
    |
