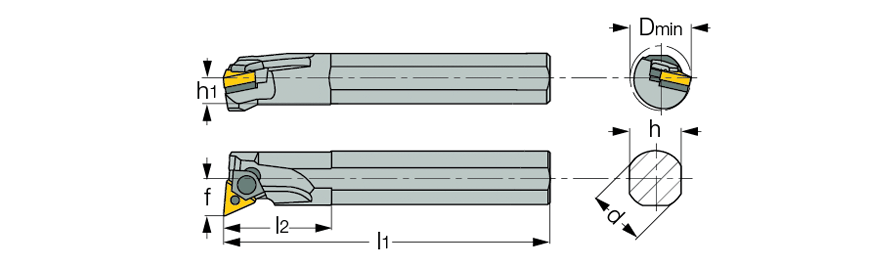

S-MTLNR/L-W :  Wedge lock boring bars for negative triangular inserts.
 Right-hand shown

Int. 60° triangle 95° approach
  Designation
d
l1
l2
h
h1
f
Ga°
Gr°		 D
min
R/L
  S25S MTLNL-16W-M  25.00  250.00  40.0  23.0  11.5  17.0  -6  -12  32.00  L
  S25S MTLNR-16W-M  25.00  250.00  40.0  23.0  11.5  17.0  -6  -12  32.00  R
