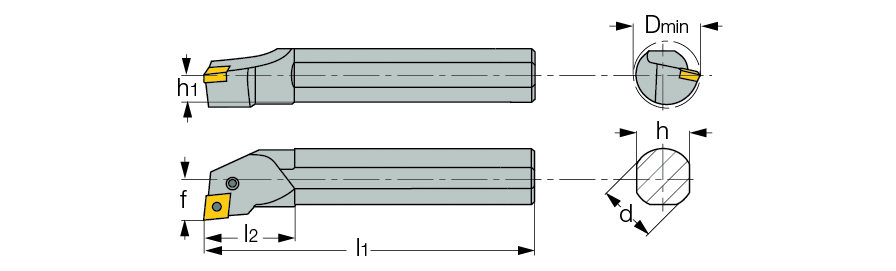

S/A-PCLNR/L :  Lever lock boring bars for negative 80° rhombic inserts.
 Right-hand shown

Int. 80° diamond 95° approach
  Designation
d
l1
l2
h
h1
f
Ga°
Gr°
Coolant		 D
min
  S25S PCLNL-12  25.00  250.00  48.0  23.0  11.5  17.0  -6  -12  N  32.00
  S25S PCLNR-12  25.00  250.00  48.0  23.0  11.5  17.0  -6  -12  N  32.00
