E90CN-M :  90° endmills with FLEXFIT threaded adaptation carrying CNHT .. inserts. Used mainly for milling square shoulders providing excellent finish of the shoulder side surface. In addition, they can ramp into the material to machine cavities.


Shouldering   Slotting   Ramp down

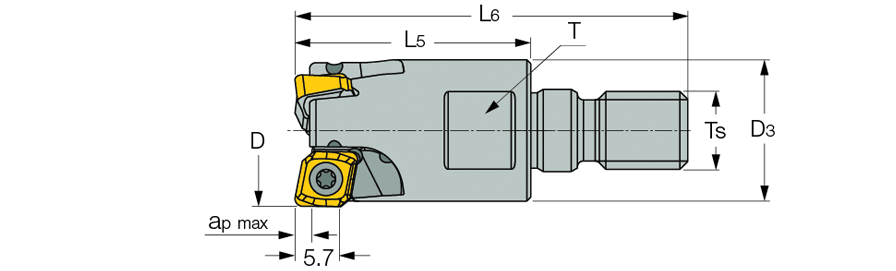

  Designation
D
Z		 ap
maxMaximum recommended depth of cut for CNMT 070308-MM insert, apmax=2 mm for CNHT 070305 insert
L5
L6
Ts
Rd°
D3
TClamping wrench size
Kg
  E90CN D16-2-M08-07  16.00  2  4.00  30.00  47.50  M08  5.0  13.00  13.0  0.03
  E90CN D20-3-M10-07  20.00  3  4.00  30.00  50.00  M10  3.5  18.00  16.0  0.02
  E90CN D25-4-M12-07  25.00  4  4.00  35.00  57.00  M12  2.5  21.00  17.0  0.09

For adaptation, click on "More Info"
