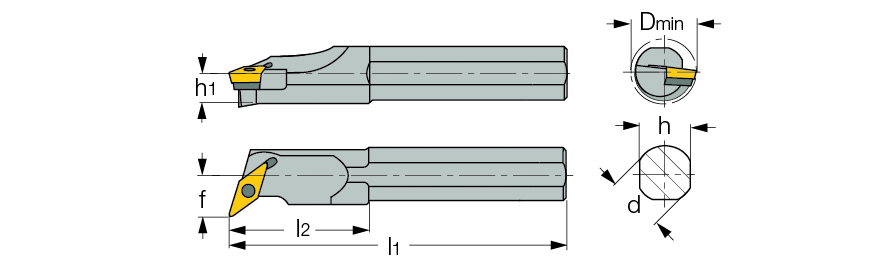

A/S-SVQCR/L :  Screw lock boring bars for 35° rhombic inserts with 7° clearance. S - Steel shank; A - Steel shank with coolant hole.
 Right-hand shown

Int. 35° diamond 107.5°approa
  Designation
d
l1
l2
h
h1
f		 D
min
Coolant
Ga°
Gr°
  S25S SVQCL-16  25.00  250.00  60.0  23.0  12.0  17.0  32.00  -  0  -5
  S25S SVQCR-16  25.00  250.00  60.0  23.0  12.0  17.0  32.00  -  0  -5
