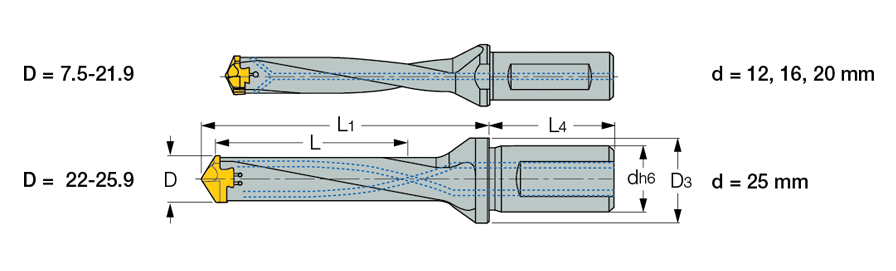

DCM-5D (7.5-25.9mm) : CHAMDRILL, indexable head drills, with 5xD drilling depth.

Designation	D min	D max	L	d	D3	L1	L4	Po. Size
DCM 180-090-25A-5D	18.00	18.90	90.0	25.00	32.00	114.3	56.0	18.0
DCM 190-095-25A-5D	19.00	19.90	95.0	25.00	32.00	120.3	56.0	19.0
DCM 200-100-25A-5D	20.00	20.90	100.0	25.00	32.00	127.0	56.0	20.0
DCM 210-105-25A-5D	21.00	21.90	105.0	25.00	32.00	132.8	56.0	21.0
DCM 220-110-25A-5D	22.00	22.90	110.0	25.00	32.00	139.1	56.0	22.0
DCM 230-115-25A-5D	23.00	23.90	115.0	25.00	32.00	145.5	56.0	23.0
DCM 240-120-25A-5D	24.00	24.90	120.0	25.00	32.00	151.6	56.0	24.0
DCM 250-125-25A-5D	25.00	25.90	125.0	25.00	32.00	159.0	56.0	25.0

Drill tolerance: k7
